State Transition Proof

Overview

The State Transition Proof is Agglayer’s trust validation process that ensures the security and validity of cross-chain operations. It works as a comprehensive verification system with two layers: internal state transition verification and cross-chain verification.

Two-Layer Verification Model

1. State Transition Proof (Validity Proof)

This layer verifies that each chain’s internal state transitions are valid. It ensures that all transactions within a chain are properly executed and the chain’s state is consistent. This is implemented through:

• Validity Proof: A detailed verification of every operation in the chain using zero-knowledge proofs
• ECDSA Signature: A simpler verification method where a trusted sequencer signs off on state changes

2. Cross-Chain Verification (Aggchain Proof & Pessimistic Proof)

This layer verifies that cross-chain operations (like asset transfers between chains) are valid. It ensures that when assets move between chains, the operations are atomic and secure through:

• Aggchain Proof: Confirms the chain’s view of bridge I/O and verifies bridge constraints
• Pessimistic Proof: Double-checks aggregate deposit and withdrawal balances

Verification Methods

ECDSA Verification

The ECDSA implementation uses a trusted sequencer that signs off on state changes to ensure they are valid. When a chain wants to update its state or perform cross-chain operations, the trusted sequencer must verify and sign these changes using their private key.

// ECDSA Verification Code
pub fn verify(
    &self,
    l1_info_root: Digest,
    new_local_exit_root: Digest,
    commit_imported_bridge_exits: Digest,
) -> Result<(), ProofError> {
    let sha256_fep_public_values = self.sha256_public_values();
    let signature_commitment = keccak256_combine([
        sha256_fep_public_values,
        new_local_exit_root.0,
        commit_imported_bridge_exits.0,
    ]);

    let recovered_signer = signature
        .recover_address_from_prehash(&B256::new(signature_commitment.0))
        .map_err(|_| ProofError::InvalidSignature)?;

    if recovered_signer != self.trusted_sequencer {
        return Err(ProofError::InvalidSigner {
            declared: self.trusted_sequencer,
            recovered: recovered_signer,
        });
    }

    Ok(())
}

Validity Proof Verification

The Validity Proof (Full execution proof, aka fep) provides comprehensive verification of chain operations, used in cdk-op-geth. It verifies every aspect of a chain’s state transition and bridge constraints.

// Validity Proof Verification Code
pub fn verify(
    &self,
    l1_info_root: Digest,
    new_local_exit_root: Digest,
    commit_imported_bridge_exits: Digest,
) -> Result<(), ProofError> {
    // Verify l1 head
    self.verify_l1_head(l1_info_root)?;

    // Verify the FEP stark proof
    sp1_zkvm::lib::verify::verify_sp1_proof(
        &self.aggregation_vkey_hash.to_hash_u32(),
        &self.sha256_public_values().into(),
    );

    Ok(())
}

Aggchain Proof

Aggchain Proof is a flexible verification system that supports different types of consensus mechanisms for proving chain state transitions. It combines internal chain verification with bridge verification to ensure both operations are secure.

Data Structure

pub struct AggchainProofWitness {
    /// Previous local exit root
    pub prev_local_exit_root: Digest,
    /// New local exit root
    pub new_local_exit_root: Digest,
    /// L1 info root used to import bridge exits
    pub l1_info_root: Digest,
    /// Origin network for which the proof was generated
    pub origin_network: u32,
    /// Full execution proof with its metadata
    pub fep: FepInputs,
    /// Commitment on the imported bridge exits minus the unset ones
    pub commit_imported_bridge_exits: Digest,
    /// Bridge witness related data
    pub bridge_witness: BridgeWitness,
}

Execution Process

1. Verify Internal Proof: First verifies the local chain’s ECDSA signature or Validity Proof
2. Verify Bridge Constraints: Then verifies the bridge constraints including:
3. GER insert/remove stack verification
4. Claimed and unset hashchains verification
5. Local Exit Root verification
6. Bridge exits commitment verification
7. GER inclusion in L1 Info Root verification

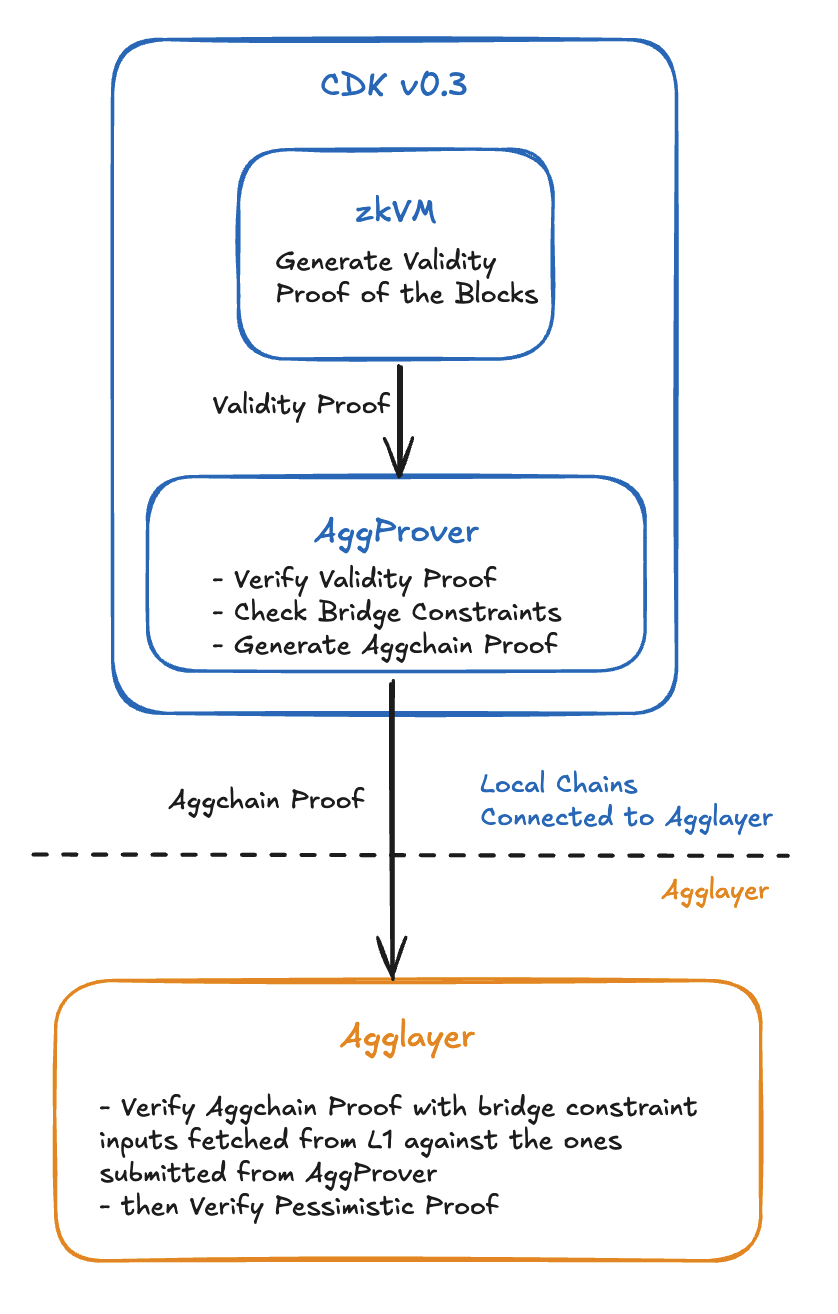

How It Works

The State Transition Proof process follows three main steps:

1. Step 1: Internal Verification
2. Chain generates validity proof or ECDSA signature of state transition

3. This happens inside a zkVM (currently SP1 zkVM)

4. Step 2: Aggchain Proof

5. AggProver verifies the internal proof and bridge constraints
6. Generates a proof of the entire verification process

7. Returns AggchainProofPublicValues

8. Step 3: Pessimistic Proof

9. Agglayer verifies the Aggchain Proof
10. Verifies Local Exit Tree, Local Balance Tree, and Nullifier Tree changes
11. Accepts the Local Chain State Transition Certificate

Note

A state root is accepted only when both internal state transition verification and cross-chain verification succeed. This dual-layer approach ensures that Agglayer can maintain security while supporting different types of chains with varying consensus mechanisms.
